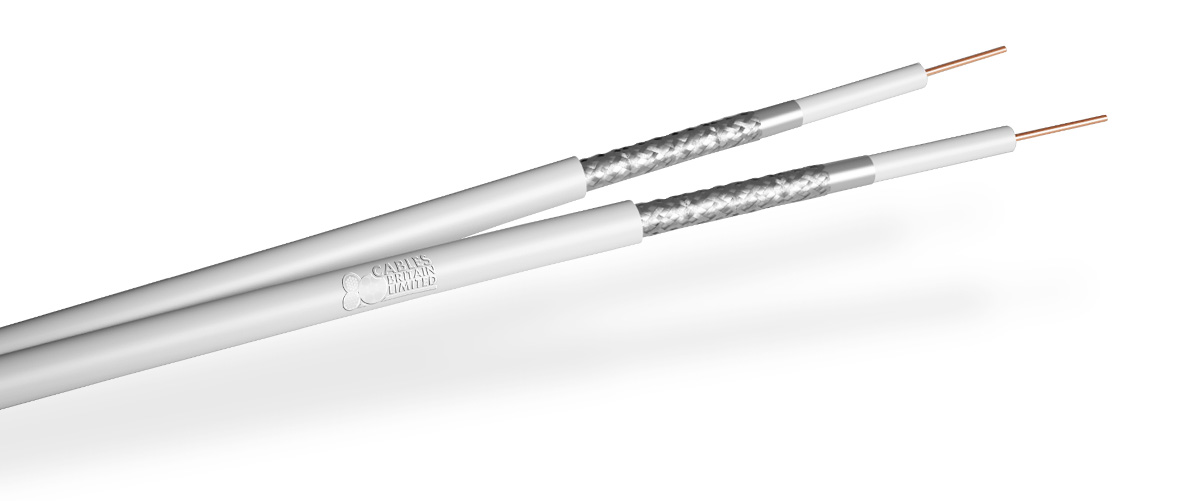

2 x CB63R

Digital cable specifically produced and patented for the digital network and satellite market.

Highly specialised designs allows these cables to bend without losing their signal integrity and they also have anti-ageing compounds which last for more than ten years – twice as long as standard dielectric cabling! What’s more, they’re now CAI Approved.

See all the Standards information.

Cable construction

Structure			2x CB63
Inner Conductor: Red copper	CU	Ø	0.70mm
Proofing in pigmented Polyethylene with black carbon	PE	Ø	0.85mm
Insulation: Foam Polyethylene	PEE	Ø	2.80mm
Black Carbon pigmented Polyethylene isolation	PE	Ø	2.90mm
Tape: Copper/Polyester	CU/PET	Ø	100%
Braid of wire in electrolytic copper	CU	Ø	3.60mm
Film in polyester	PET		100%
Sheath: UV Polyvinylchloride	PVC	Ø	4.70mm 9.70mm

Mechanical properties

Minimum Bending Radius	20/50 mm
Weight Approx	45 Kg/Km

Electrical characteristics

Nominal Impedance:		75 Ohm ± 3%
Capacitance approx:		52 pF/m ± 2%
Velocity Ratio:		85 %
DC Resistance:	Inner Conductor Outer Conductor	45 Ohm/Km 13 Ohm/Km
Screening Attenuation:		> 90 dB
Maximum Voltage:		1.5 KV

Attenuation dB/100m

Frequency	Atten
100 MHz	dB 9.5
300 MHz	dB 16.0
500 MHz	dB 20.0
860 MHz	dB 27.5
1000 MHz	dB 29.5
1750 MHz	dB 39.5
2050 MHz	dB 42.0
2150 MHz	dB 43.5
2500 MHz	dB 48.0
3000 MHz	dB 53.0

Structural Return Loss (db)

20-470 MHz	dB >29
470-2500 MHz	dB >23

Our digital coaxial cables have many accessories. For more information, don’t hesitate to call us on 0121 508 6890 or get in touch via Contact Page.
