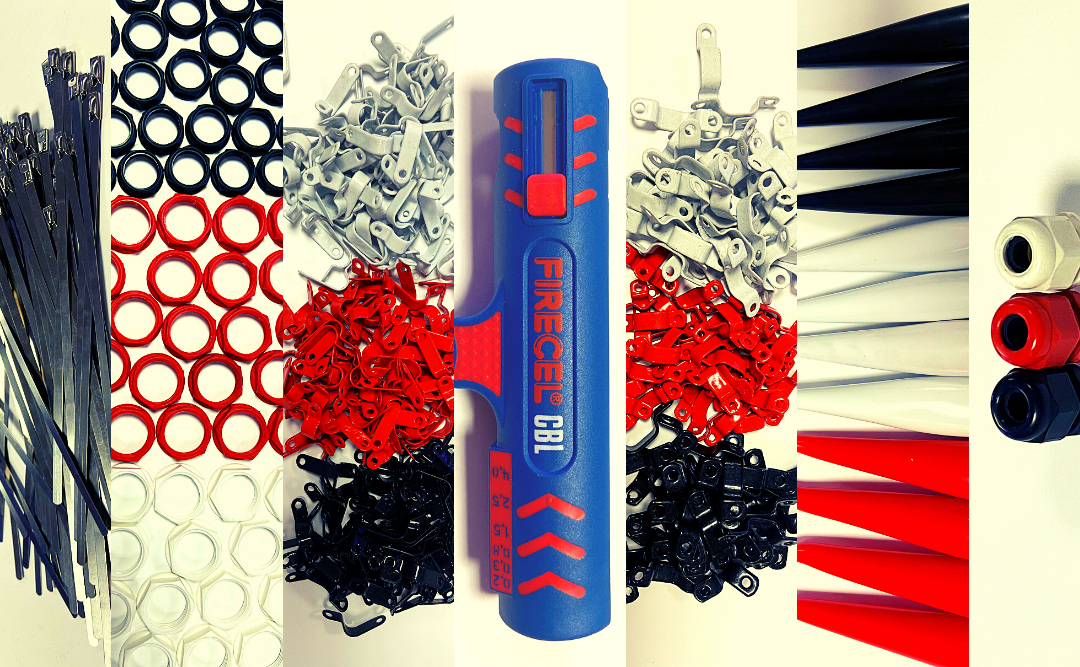

Size Guide

Size Guide

Fire Alarm & Emergency Standard 300/500V

Accessories
Cable Size (mm)Cable CoresP Clips SizeRSFJ Double Clips SizeGlands
1.02+EAC7302251
1.52+EAC8342251
2.52+EAC11382251
4.02+EAC12362252
1.03+EAC9342251
1.53+EAC9342251
2.53+EAC11422252
4.03+EAC13TBA254
1.04+EAC9382251
1.54+EAC9382251
2.54+EAC12422252
4.04+EAC14TBA254
1.07+EAC11422251
1.57+EAC12422252
2.57+EAC13TBA254
1.512+EAC14632254
2.512+EAC20TBA255
1.519+EAC16702255
2.519+EAC23TBATBA

Certified to Low Voltage Directive (LVD) 2006/95/EC

Contains NO HALOGENS essential for use with LSZH Fire Cable.

Available in the following colours: black, red & white with any other colour available for manufacture.

“AC”clips packed in 100`s “rsfj”double clips packed in 50`s glands packed in 100`s

Prefix to product code for ordering purposes.

Carriage paid on all orders over £250.00 nett value.

Flame retardant glands red also available on request
Locknuts for glands charged extra m20 locknuts
30150 the recommended stripping tool
T3964 cable cutter for o.D. 50.0mm or 14.0mm max
Cable Shrouds

Cable Shrouds

Fire Alarm & Emergency Standard 300/500V

Features

  • LSF cable shroud
  • Low smoke and fume
  • Fire resistant
  • Colours: Red, White & Black
  • Packaging – Packet of 10

Shrouds

Cable Size (mm)Cable CoresShroud
1.02+ESH20
1.52+ESH20
2.52+ESH20
4.02+ESH20
1.03+ESH20
1.53+ESH20
2.53+ESH20
4.03+ESH20
1.04+ESH20
1.54+ESH20
2.54+ESH20
4.04+ESH20
1.07+ESH20
1.57+ESH20
2.57+ESH20
1.512+ESH20
2.512+ESH20
1.519+ESH20
2.519+ESH20

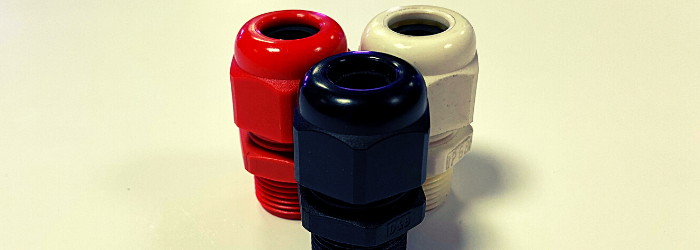

Cable Glands

Cable Glands

Fire Alarm & Emergency Standard 300/500V

Features

  • Halogen free
  • IP68
  • Comply with BSEN 50262: 1999
  • Resistant to corrosion
  • Low smoke and fume
  • Fire resistant
  • Colours: Red, White & Black
  • Packaging – Packet of 100

Fire Cable Gland Sizing

Cable Size (mm)Cable CoresGlands
1.02+E251
1.52+E251
2.52+E251
4.02+E252
1.03+E251
1.53+E251
2.53+E252
4.03+E254
1.04+E251
1.54+E251
2.54+E252
4.04+E254
1.07+E251
1.57+E252
2.57+E254
1.512+E254
2.512+E255
1.519+E255
2.519+ETBA

LSF P Clips

LSF P Clips

Fire Alarm & Emergency Standard 300/500V

Features

  • Halogen free
  • Resistant to corrosion
  • Low smoke and fume
  • Fire resistant
  • Colours: Red, White & Black
  • Material – Copper
  • Packaging – Box of 100

P Clip Sizes

Cable Size (mm)Cable CoresP Clips Size
1.02+EAC7
1.52+EAC8
2.52+EAC11
4.02+EAC12
1.03+EAC9
1.53+EAC9
2.53+EAC11
4.03+EAC13
1.04+EAC9
1.54+EAC9
2.54+EAC12
4.04+EAC14
1.07+EAC11
1.57+EAC12
2.57+EAC13
1.512+EAC14
2.512+EAC20
1.519+EAC16
2.519+EAC23

LSF P Clips

Double P Clips

Fire Alarm & Emergency Standard 300/500V

Features

  • Halogen free
  • Resistant to corrosion
  • Low smoke and fume
  • Fire resistant
  • Colours: Red, White & Black
  • Material – Copper
  • Packaging – Box of 50

Accessories

Cable Size (mm)Cable CoresRSFJ Double Clips Size
1.02+E302
1.52+E342
2.52+E382
4.02+E362
1.03+E342
1.53+E342
2.53+E422
4.03+ETBA
1.04+E382
1.54+E382
2.54+E422
4.04+ETBA
1.07+E422
1.57+E422
2.57+ETBA
1.512+E632
2.512+ETBA
1.519+E702
2.519+ETBA

Cable Strippers

Cable Strippers

Fire Alarm & Emergency Standard 300/500V

CBL Cable Stripper

The CBL cable stripper is perfect to use with our range of fire performance cables, its simple and easy to use design makes stripping cable very quick and easy

Features

  • secure grip achieved by introducing soft padding for non-slip grips,
  • new locking mechanism prevents the unwanted opening of the tool,
  • absolutely straightforward longitudinal cuts – with innovative internal cable duct,
  • redesigned blade layout and intake to stop cable waste from jamming the tool,
  • no cutting depth adjustments required,
  • the special outlined blades allow the effortless stripping of solid and stranded wires of diameters 0.2 – 0.3 – 0.8 – 1.5 – 2.5 – 4.0 mm²,
  • blades with special Titanium-Nitride coating (TIN) to achieve longer life, faster cutting and less wear,
  • with integrated, mulit-function, slide-out blade,
  • Durable and ergonomically designed pocket clip,
  • this tool is the ideal choice for working in cable junctions or connector boxes,
  • TÜV / GS approved
