BS 5308 Part 1 Type 3 – CAM – PE – PVC Instrumentation Cable

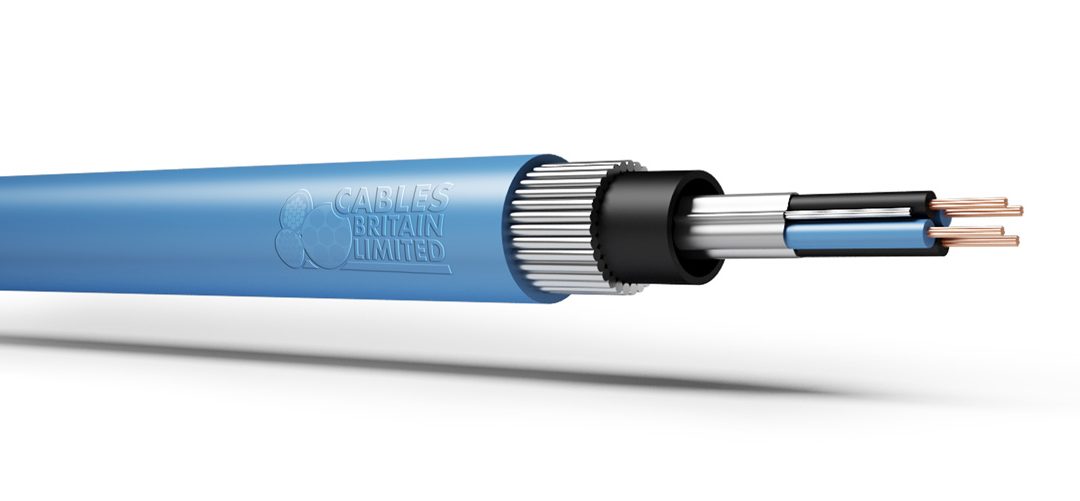

Cable construction
| Conductor | Class 1 solid copper conductor according to BS EN 60228 (previously BS 6360) Class 2 stranded copper conductor according to BS EN 60228 (previously BS 6360) Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) |
| Insulation | PE (Polyethylene) |
| Binder Tape | PET (Polyester Tape) |
| Screen | AL/PET (Aluminium/Polyester Tape) |
| Drain Wire | Tinned copper |
| Covering | Lead or polyamide |
| Inner Sheath | PE (Polyethylene) |
| Armour | Galvanized steel wires |
| Outer Sheath | PVC (Polyvinyl Chloride) |
| Bedding | PE (Polyethylene) |
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm |
|---|---|---|
| 1P | 0.5 | 15.4 |
| 1P | 0.75 | 15.6 |
| 1P | 1 | 15.8 |
| 1P | 1.5 | 16.9 |
| 1P | 2.5 | 18.4 |
| 1T | 0.5 | 16 |
| 1T | 0.75 | 16.2 |
| 1T | 1 | 16.4 |
| 1T | 1.5 | - |
| 1T | 2.5 | 19.2 |
| 2P(Q) | 0.5 | 16.3 |
| 2P(Q) | 0.75 | 16.8 |
| 2P(Q) | 1 | 17 |
| 2P(Q) | 1.5 | 19 |
| 2P(Q) | 2.5 | 20 |
| 5P | 0.5 | 22.6 |
| 5P | 0.75 | 24.8 |
| 5P | 1 | 25 |
| 5P | 1.5 | 27.4 |
| 5P | 2.5 | 29.4 |
| 10P | 0.5 | 28.4 |
| 10P | 0.75 | 29.4 |
| 10P | 1 | 29.6 |
| 10P | 1.5 | 33.2 |
| 10P | 2.5 | 38.3 |
| 15P | 0.5 | 31.2 |
| 15P | 0.75 | 32.7 |
| 15P | 1 | 32.9 |
| 15P | 1.5 | 38.4 |
| 15P | 2.5 | 43 |
| 20P | 0.5 | 33.9 |
| 20P | 0.75 | 37.4 |
| 20P | 1 | 37.6 |
| 20P | 1.5 | 42.1 |
| 20P | 2.5 | 48.6 |
| CROSS SECTIONAL AREA | CONDUCTOR CLASS | MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C ohms/km |
|---|---|---|
| 0.5 | 5 | 39 |
| 0.75 | 5 | 26 |
| 1 | 1 | 18.1 |
| 1.5 | 2 | 12.1 |
| 2.5 | 2 | 7.41 |
| CROSS SECTIONAL AREA mm² | MUTUAL CAPACITANCE pF/m | MINIMUM INSULATION RESISTANCE AT 20°C Mohms/km | MAXIMUM L/R RATIO µH/ohms | ||
|---|---|---|---|---|---|
| Cables with Collective Screen Only | 1 Pair, 2 Pairs, 1 Triple Collectively Screened | Cables with Individually Screened Pairs | |||
| 0.5 | 75 | 115 | 115 | >5 | 25 |
| 0.75 | 75 | 115 | 115 | >5 | 25 |
| 1 | 75 | 115 | 115 | >5 | 25 |
| 1.5 | 85 | 120 | 120 | >5 | 40 |
| 2.5 | 85 | 120 | 120 | >5 | 65 |
