LISTcontroler single and loop back



  • The LISTcontroller represents the central control and evaluation unit, utilising an ARM9™ embedded processor and two additional distributed processors to continually, quickly, and reliably monitor temperatures
  • Sensor cable and unit redundancy via Loop-Back or Rerouted Data Transmission (LISTEC LB-/ RDT-function)
  • Alarm triggering via differential and maximum temperature evaluation
  • Up to 254 programmable individual zones with alarm and fault status signalling to superordinate systems via up to 16 relay modules with 16 relay contacts each
  • High temperature resolution of 0.1 °C with a repeatability of ±0.1 K along the entire sensor cable length
  • Free from false alarms, caused by natural ambient temperature fluctuations, due to intelligent evaluation algorithms
  • Alarm and fault indications via LEDs and LC-Display plain text messages in several languages
  • Signalling of alarm and fault status to superordinate systems via galvanically isolated relay contacts and/or data-interfaces with open data-protocols
  • Highly durable via utilisation of maintenance-free components in a modular configuration, RoHS compliant
  • Very low energy consumption
  • Flexible communication
  • Verified and approved to FprEN 54-22:2012 by VdS Schadenverhütung, VdS no.: G 213072. Meets requirements of environmental classification III
  • Web-interface
  • 8 languages configurable (Dutch, English, French, German, Italian, Polish, Spanish, Swedish)
  • Individual password-protected access levels for operators, maintenance and service personnel, as well as for commissioning

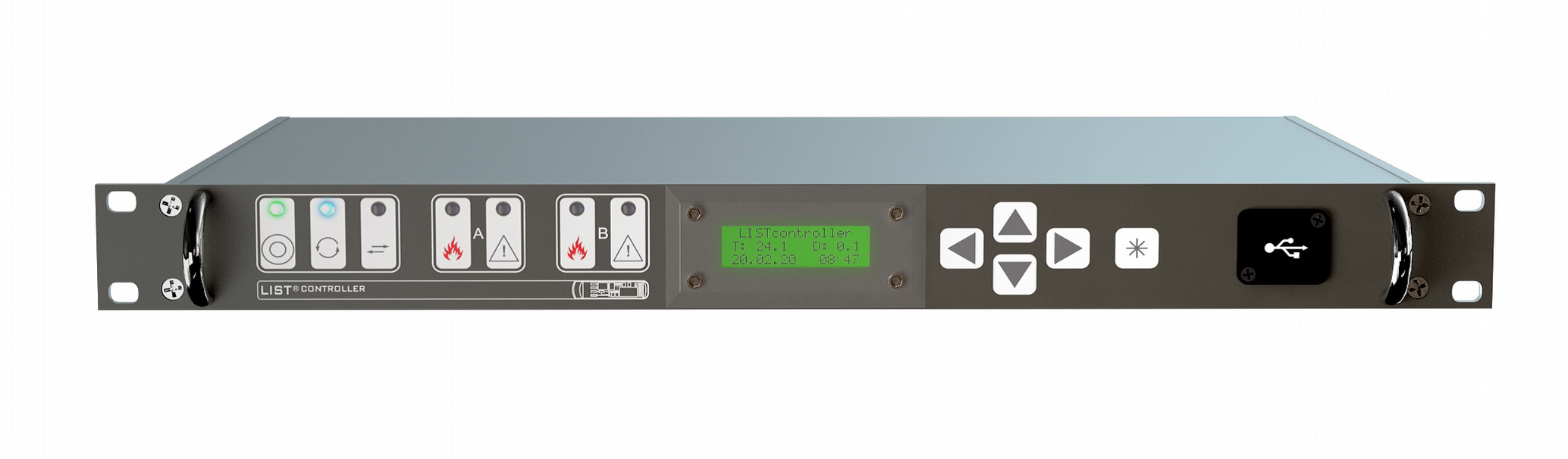

Front panel displays

  • Operation: LED green
  • Measuring cycle: LED blue
  • Data transmission: LED orange
  • Fire alarm SEC A/ SEC B: LED each red
  • Fault SEC A/ SEC B: LED each orange
  • LC-Display: Plain text messages and menu navigation

Front panel Operation

  • 5 button membrane keyboard for menu navigation, data and function input

System specifications

  • Measuring resolution: 0,1 °C
  • Repeatability:  0,1 K
  • Sensor quantity: Min. 10 / max. 500 (320 approved by VdS Schadenverhütung according to FprEN 54-22:2012)
  • Sensor cable length: Up to 3.200 m
Connections and interfaces

  • SEC1 / SEC2: SEC A / SEC B sensor cable connection (SEC 2 only with Loop Back or RDT-systems)
  • CONTROL I/O: RS485 data-interface to optional relay modules, as well as in/outputs (external reset, general relays for pre-alarm, alarm, fault, frost-alarm)
  • Power supply: 24 V DC
  • COM 1: RS485 data-interface for LIST master/slave or RDT-communication in a LIST network
  • Com 2: RS232  Service-interface for LISTEC GmbH only
  • Com 3: RS232 data-interface for unit parameterisation (Service-interface up to 115200 kb/s)
  • LAN: Ethernet network-interface with 100Mb/s for LIST RDT-communication as well as commissioning and maintenance via standard browsers
  • USB-host: To retrieve maintenance files and optionally saved alarm temperature data, as well as to transfer unit configurations and perform software updates

Supported software protocols

  • MODBUS (RTU) via serial interface COM2
  • 3964R (Siemens) via serial interface COM2
  • UGM 2005/2020 (Bosch) via serial interface COM2
  • EDP (Esser data protocol) via serial interface COM2
  • UGM 2040 (Bosch) via LAN interface
  • MODBUS TCP via LAN interface
  • IEC 60870-5-104 via LAN interface

General data

  • Operating temperature: -5 °C … +70 °C, (-25 °C feasible with the exception of an illegible LC-Display)
  • Dimensions: 482,6 x 43,6 x 315,5 mm (w x h x d), resembling a 19” – 1 U case, 400 mm depth to be considered with connection cables attached
  • Case material: Aluminium
  • Weight: 2,6 kg
  • Power supply: 9,5 V … 36 V DC
  • Current draw: Typ. 175 mA (Normal) / 212 mA (Alarm), at 24 V DC
  • Power consumption: Max. 5 W
  • Relay output: 1 Relay each for alarm, pre-alarm and frost-alarm 1 Relay for fault (= active without power)
  • Switching Voltage: 48 V DC / 32 V AC max.
  • Switching current: 250 mA max. (resistive load)
  • Input: 1 x external reset (5 V … 36 V DC)

Ordering information

  • LIST CONTROLLER SEC (Unit with one sensor cable connection)
  • LIST CONTROLLER LB (Unit with two sensor cable connections for Loop-Back or RDT mode)
  • RDT function for LIST CONTROLLER LB
  • I/P Interface and Protocol for LIST controller (via RS232 with MODBUS (RTU), via Ethernet with MODBUS TCP, one license per system)
  • FCP Interface and Protocol for LISTcontroller (via RS232 or TCP with protocol UGM (Bosch) or via RS232 with protocol EDP (ESSER), one license per system)
  • LISTcontroller I/P IEC 60870-5-104 (via Ethernet with protocol IEC 60870-5-104, one license per system)

Scope of delivery

  • LISTcontroller
  • Pre-assembled 3 m connection cable lengths for sensor cable, Control I/O, COM1 and power supply
  • List memory USB flash drive
