Combustion behaviour

  • UL 94 V-2
  • UL 50 5VA / UL 746C
  • EN 60695-11-10 / IEC 60695-11-10, 960 °C
  • VDE 0471 part 11-10, 960 °C
  • CSA C 22.2

Ordering information

  • Connection Box CBO 15-SEC
    Connection of up to two sensor cables SEC 15 and up to two connection cables CC 15 to
    d-LISTcontroller cable port A / B
  • Connection Box CBO 15-ESD Art.-no.: 62-2001004-02-xx
    Connection variant 1: Connection of up to two sensor cables SEC 15 and up to two connection
    cables CC 15 to d-LISTcontroller cable port A / B
    Connection variant 2: Connection of one sensor cable SEC 15, up to four external sensors
    ESD-A5, and up to two connection cables CC 15 to d-LISTcontroller
    cable port A / B
    Connection variant 3: Connection of up to eight external sensors ESD-A5 and up to two
    connection cables CC 15 to d-LISTcontroller cable port A / B

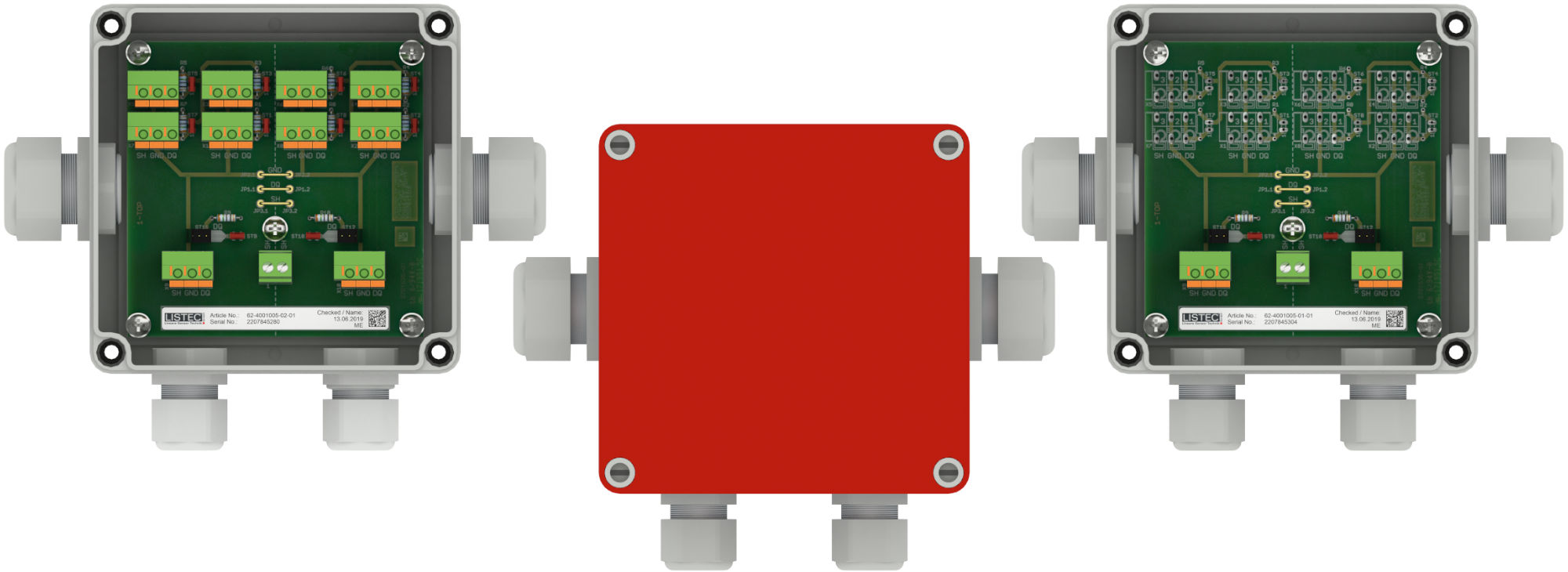

Connection Box CBO 15

This is the new Connection box to be used with up to two sensor Sec 15 cables



General data

  • Case material: Glass-fibre reinforced polycarbonate, free from halogen, silicone, heavy metal and PVC, UV- and weather-proof
  • Ingress protection: IP 66 according to EN 60529:2000
  • Protection class: II – protective insulation according to VDE 0106
  • Impact resistance: IK 08, according to DIN EN 50102 (VDE 0470-100)
  • Case body: Light grey, similar to RAL 7035
  • Case lid: Red, similar to RAL 3020
  • Gasket: Polyurethane
  • Mounting: Mounting screws outside of sealed enclosure interior
  • Operating temperature: -35 °C … +70 °C, up to +80 °C short term
  • Storage Conditions: 0 °C … +60 °C, 30% … 70% relative humidity, non condensing, prevention against shock, vibration, dust, electrostatic discharge ESD, UV light
  • Cable glands: Metric, with O-Ring
  • Weight: 0,48 … 0,55 kg (depending on configuration)
  • Dimensions: 130,0 x 130,0 x 74,7 mm, without cable glands (w x h x d)

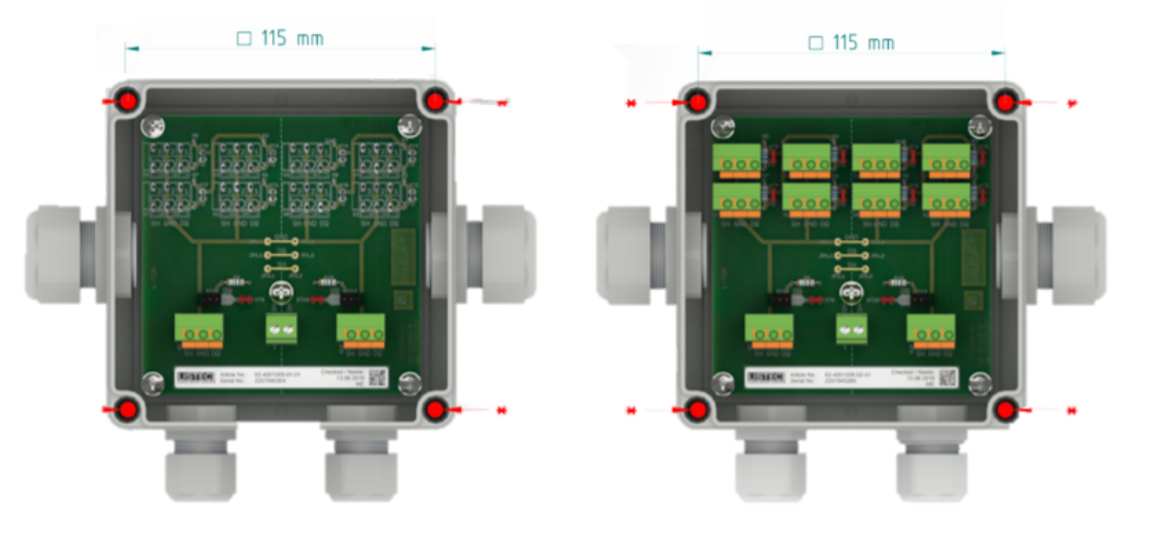

CBO 15 Models

CBO 15-SEC                                                                                                 CBO 15-ESD
