General Information

  • Dimensions: 289,5 x 177,5 x 91,0 mm (w x h x d, maximum inclusive cable glands)
  • Case material: Aluminium, powder coated in RAL 7035, light grey
  • Power supply: +10,5 V … +30 V DC
  • Outputs: Two optical outputs ( +5 V … +30 V DC, 500 mA)
  • Inputs: Four optical inputs and 1 x external reset (+5 V … +30 V DC, 3 mA)
  • Storage Conditions: 0 °C … +60 °C, 30% … 70% relative humidity, non condensing, prevention against shock, vibration, dust, electrostatic discharge ESD, UV light

d-LCON

  • Weight: 1,95 kg, inclusive cable glands
  • Current draw: Maximum 145 mA (normal operation) / maximum 150 mA (alarm) at 24 V DC and +25°C
  • Power consumption: Maximum 4,4 W at +10,5 V DC and +25°C
  • Relays: One each for common fire alarm and common fault per cable port A / B

d-LCON + Relay board REL 835

  • Weight: 2,1 kg, inclusive cable glands
  • Current draw: Maximum 175 mA (normal operation) / maximum 210 mA (alarm) at 24 V DC and +25°C
  • Power consumption: Maximum 5,5 W at +10,5 V DC and +25°C
  • Relays: One each for common fire alarm and common fault per cable port A / B as well as 16 zonal relays for alarms, faults or pre-alarms per programmed sensor cable zone

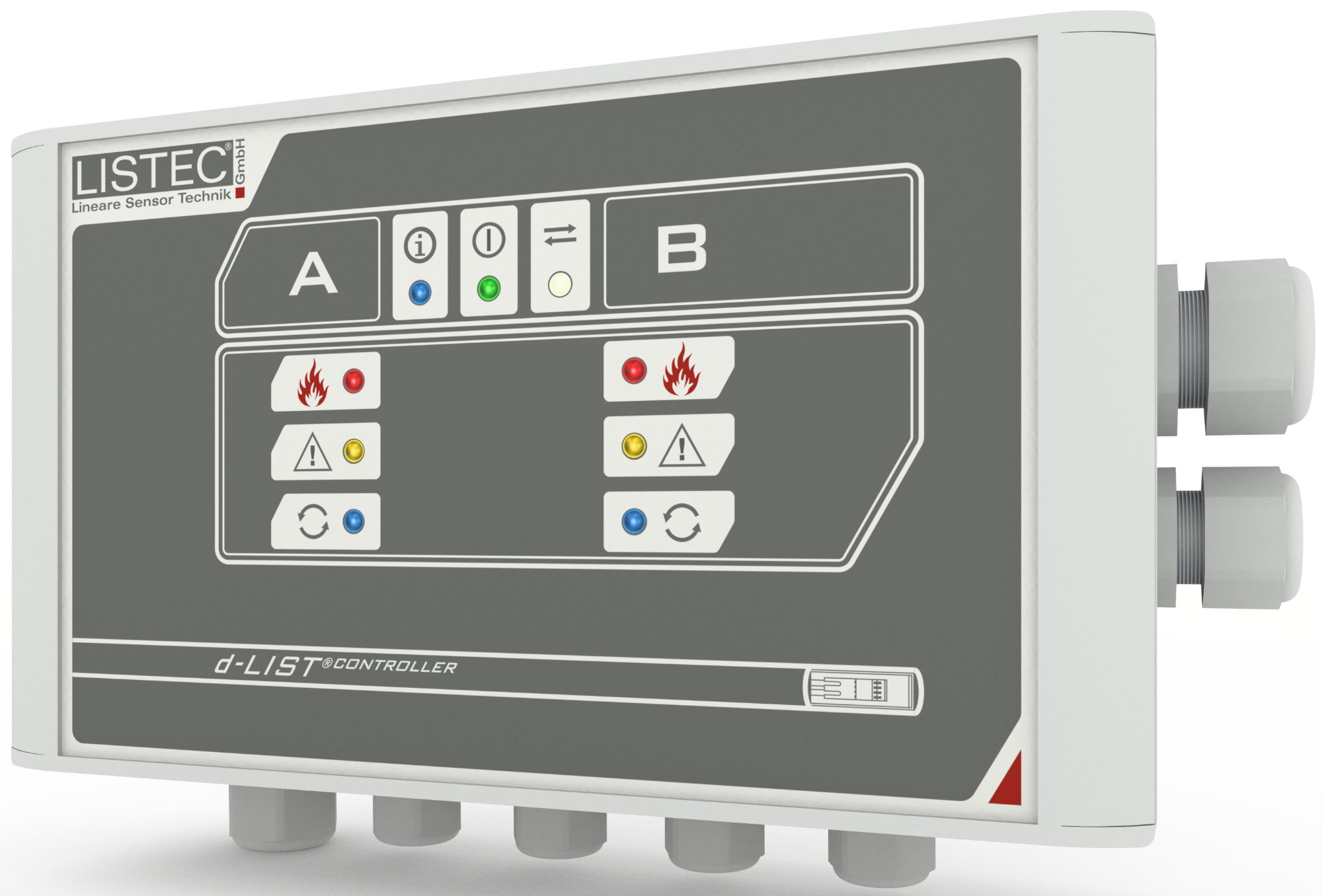

Sensor Control Unit d-LIST controller

The SCU d-List Controller works as the control and evaluation unit of the resettable line-type heat detector d-LIST





Features

  • Measurement resolution of 0,0625 °C with a repeatability of ± 0.0625K along the entire sensor cable length
  • 10 second measuring cycle
  • Expandable with relay board REL 835 with 16 relays, or adapter plates for alarm transponder or XLM 35
  • From 255 possible zones, up to 32 alarm zones can be programmed differently on 16 alarm relays
  •  Up to 16 individually programmable zones
  • Two sensor cable inputs A and B
  • May be used with sensor cable SEC 15, external sensors ESD, connection boxes CBO 15

Specifications

  • Operating temperature: -25 °C …+70 °C (environmental class III)
  • Ingress protection: IP 65
  • Measurement resolution: 0,0625 °C, output via protocol interface 0,1 °C
  • Repeatability: ± 0,0625 K, output via protocol interface ± 0,1K
  • Sensor quantity: Min. 10 / max. 100 sensors per sensor cable port A / B
  • Sensor cable length: Min. 10 m / max. 320 m per sensor cable port (max. 350 m including connection cable CC 15)
